Scan Configuration

The scan configuration lets you automatically transform barcodes before they are passed to the app. You define rules that determine when a configuration applies, and actions that modify the scanned text.

Where to find it

Settings → Keyboard → Scan Configuration

---

How it works

Barcode scanned
       │
       ▼
 Which rule matches?  ──►  matching configuration found
       │
       ▼
 Execute actions in order
       │
       ▼
 Pass result to app

Each configuration consists of:

1. Name – shown in the overview list
2. Rule – when does this configuration apply?
3. Actions – what should happen to the barcode?

---

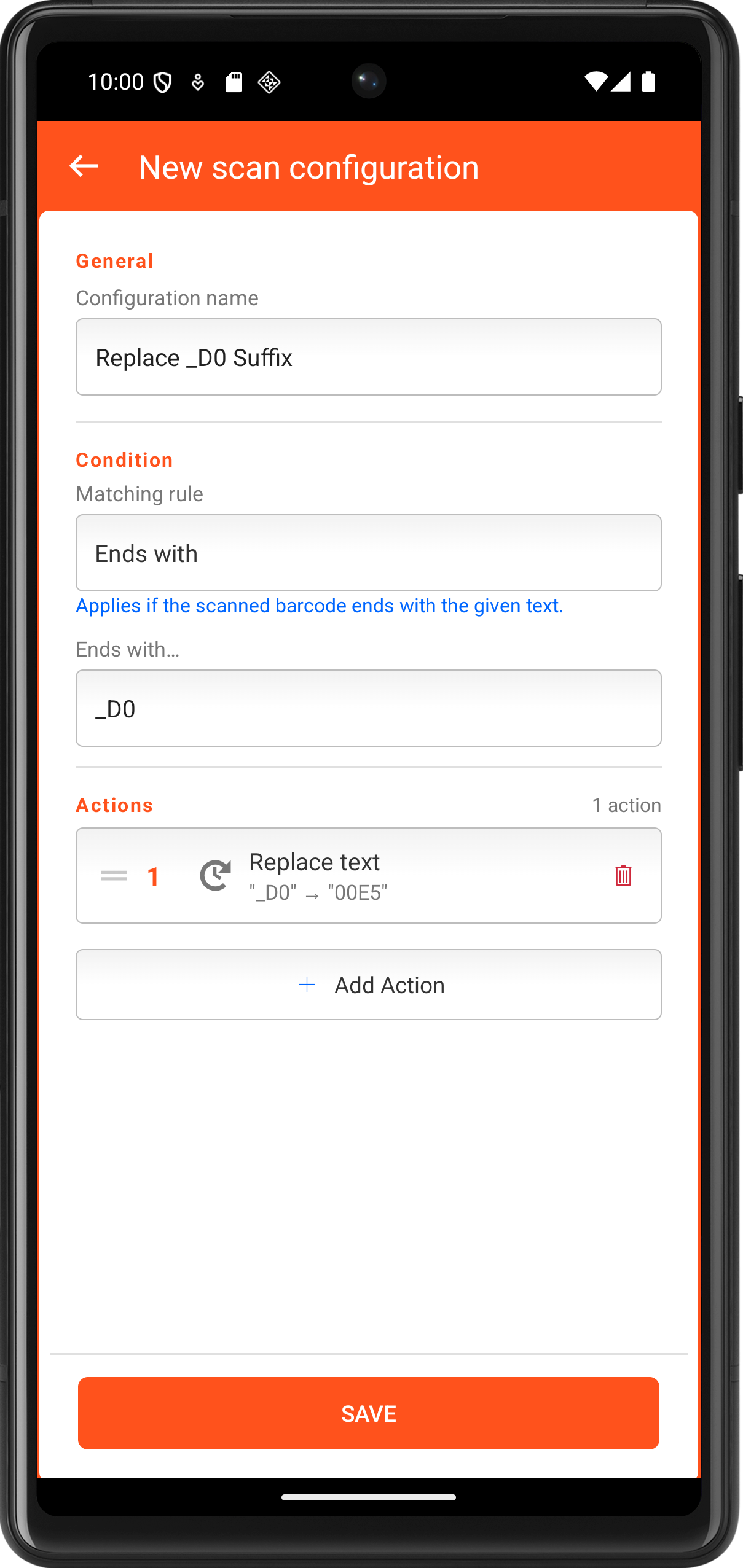

Creating a configuration

1. Open Scan Configuration in settings
2. Tap Add scan configuration
3. Enter a name (e.g. "EAN-13")
4. Choose a rule (e.g. "Exact – 13 characters")
5. Add one or more actions
6. Tap Save

---

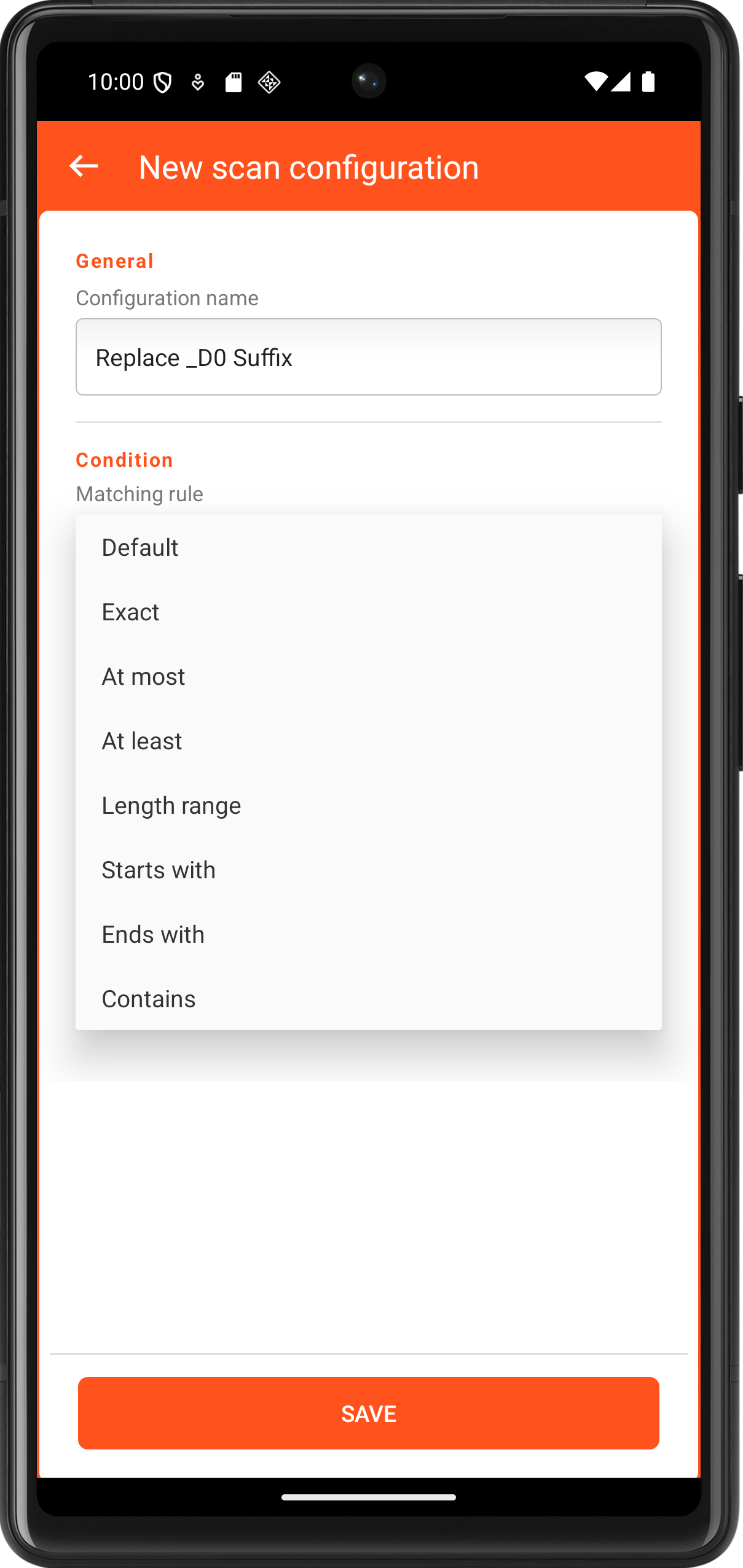

Rules

The rule defines which barcodes this configuration applies to. If multiple configurations match, the most specific rule wins.

Rule priority

Priority	Rule types
Highest	Exact, Starts with, Ends with, Contains, Length range
Medium	At most, At least
Lowest	Default (fallback)

Rule types

Rule	Description	Parameter
Default	Always applies when no other rule matches	–
Exact	Only when the barcode length is exactly X characters	Number X
At most	When the length is ≤ X	Number X
At least	When the length is ≥ X	Number X
Length range	When the length is between min and max (inclusive)	Min, Max
Starts with	When the barcode starts with a specific text	Text
Ends with	When the barcode ends with a specific text	Text
Contains	When the barcode contains a specific text	Text

Example

You have EAN-13 barcodes (always 13 characters) and EAN-8 barcodes (always 8 characters). Create two configurations with rule Exact 13 and Exact 8 — each applies only to the matching type.

---

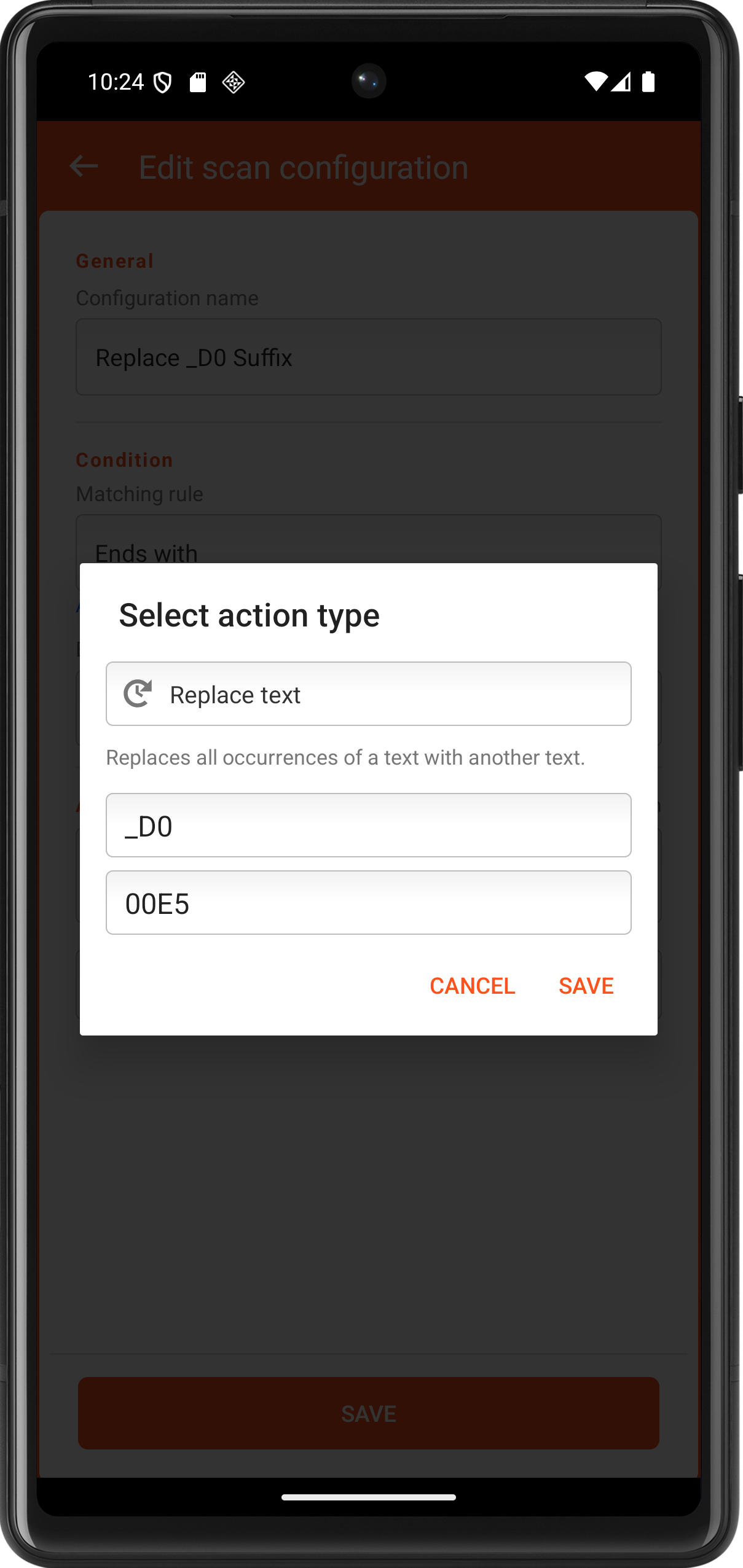

Actions

Actions modify the scanned text. They are executed in the displayed order — the result of one action is the input for the next.

The order can be changed via drag & drop (long-press the handle icon ☰ on the left).

Remove characters

Action	Description	Parameter	Example
Cut first characters	Removes the first X characters	Count	001234 → 1234 (X=2)
Cut last characters	Removes the last X characters	Count	12345678 → 123456 (X=2)
Use first characters	Keeps only the first X characters	Count	ABCDEF → ABC (X=3)
Use last characters	Keeps only the last X characters	Count	ABCDEF → DEF (X=3)
Extract substring	Copies X characters starting at position P	Position, Count	ABCDEF → BCD (P=1, X=3)

Counting positions

Positions start at 0. The first character is at position 0, the second at position 1, and so on.

Add text

Action	Description	Parameter	Example
Add first characters	Prepends text	Text	1234 → ART-1234
Add last characters	Appends text	Text	1234 → 1234-DE
Insert separator at position	Inserts text at position P	Position, Text	12345678 → 1234-5678 (P=4)

Replace text

Action	Description	Parameter	Example
Replace text	Replaces all occurrences of a search term	Search, Replace	00-12-00 → 00.12.00

Zeros

Action	Description	Example
Remove leading zeros	Removes zeros at the beginning	00042 → 42
Remove trailing zeros	Removes zeros at the end	42000 → 42

Padding

Action	Description	Parameter	Example
Pad left	Pads to target length N with character C from the left	Length, Char	42 → 00042 (N=5, C=0)
Pad right	Pads to target length N with character C from the right	Length, Char	42 → 42000 (N=5, C=0)

Case conversion

Action	Description	Example
Uppercase	Converts all characters to uppercase	article → ARTICLE
Lowercase	Converts all characters to lowercase	ARTICLE → article

---

Combining actions

Actions are executed one after another. The output of each action becomes the input of the next.

Example: Prepare EAN-13 for inventory system

Barcode: 4006381333931

Step	Action	Result
1	Cut first characters (X=1)	006381333931
2	Cut last characters (X=1)	00638133393
3	Remove leading zeros	638133393
4	Add first characters: ART-	ART-638133393

---

Deleting a configuration

Tap the red trash icon on the right side of a configuration in the overview list. A confirmation dialog appears before the configuration is permanently deleted.

---

Frequently asked questions

What happens if no rule matches? If no configuration applies and there is no Default entry, the barcode is passed through unchanged.

Can multiple configurations match the same barcode? Yes — only the highest-priority configuration is applied. If two configurations have the same priority, the one higher up in the list wins.

Does the order of configurations in the list matter? Only when two configurations have the same rule priority — in that case, the one listed first takes precedence.

Can actions result in an empty barcode? Yes. If, for example, all characters are cut, an empty string is passed to the app.
